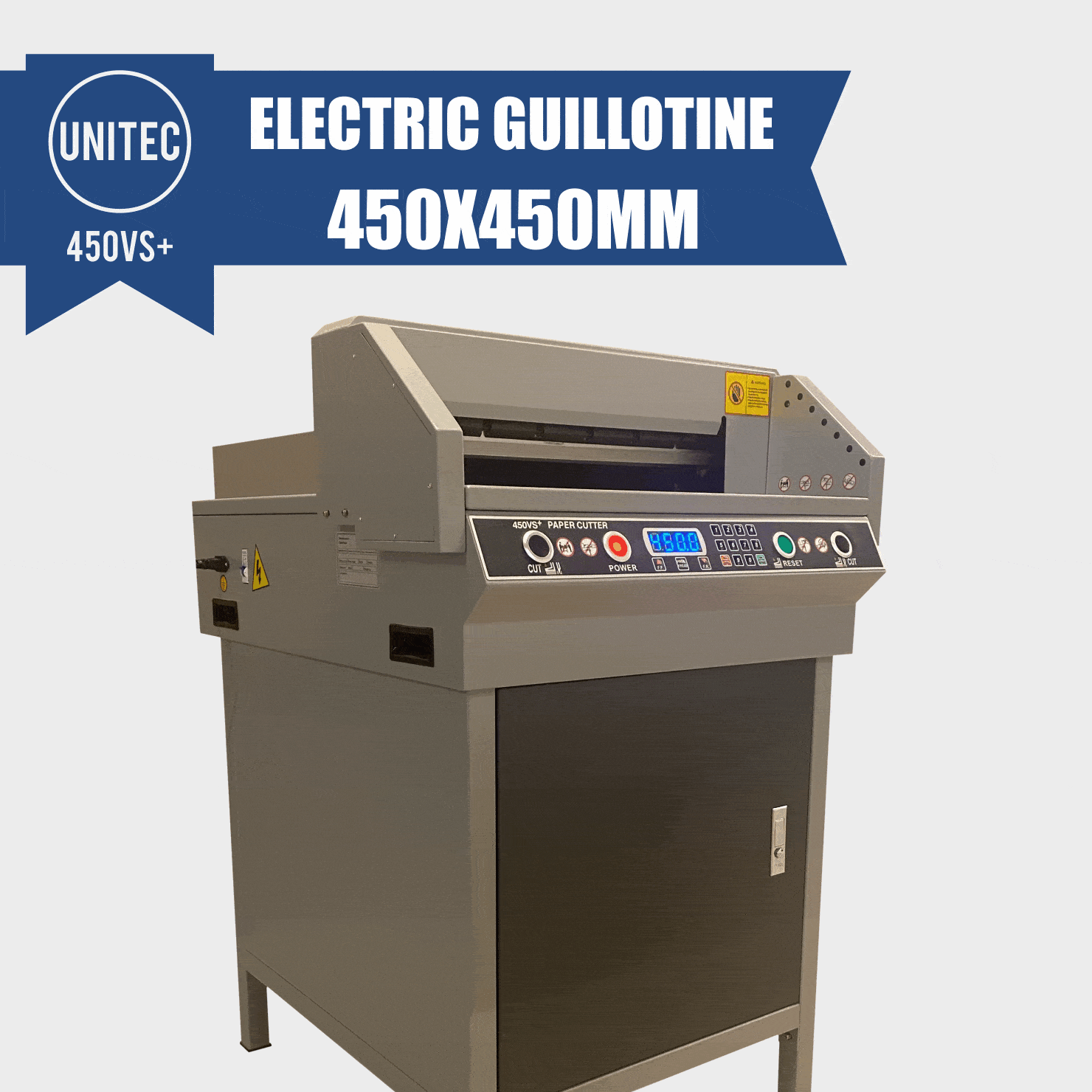

UNITEC 450VS + GUILLOTINE

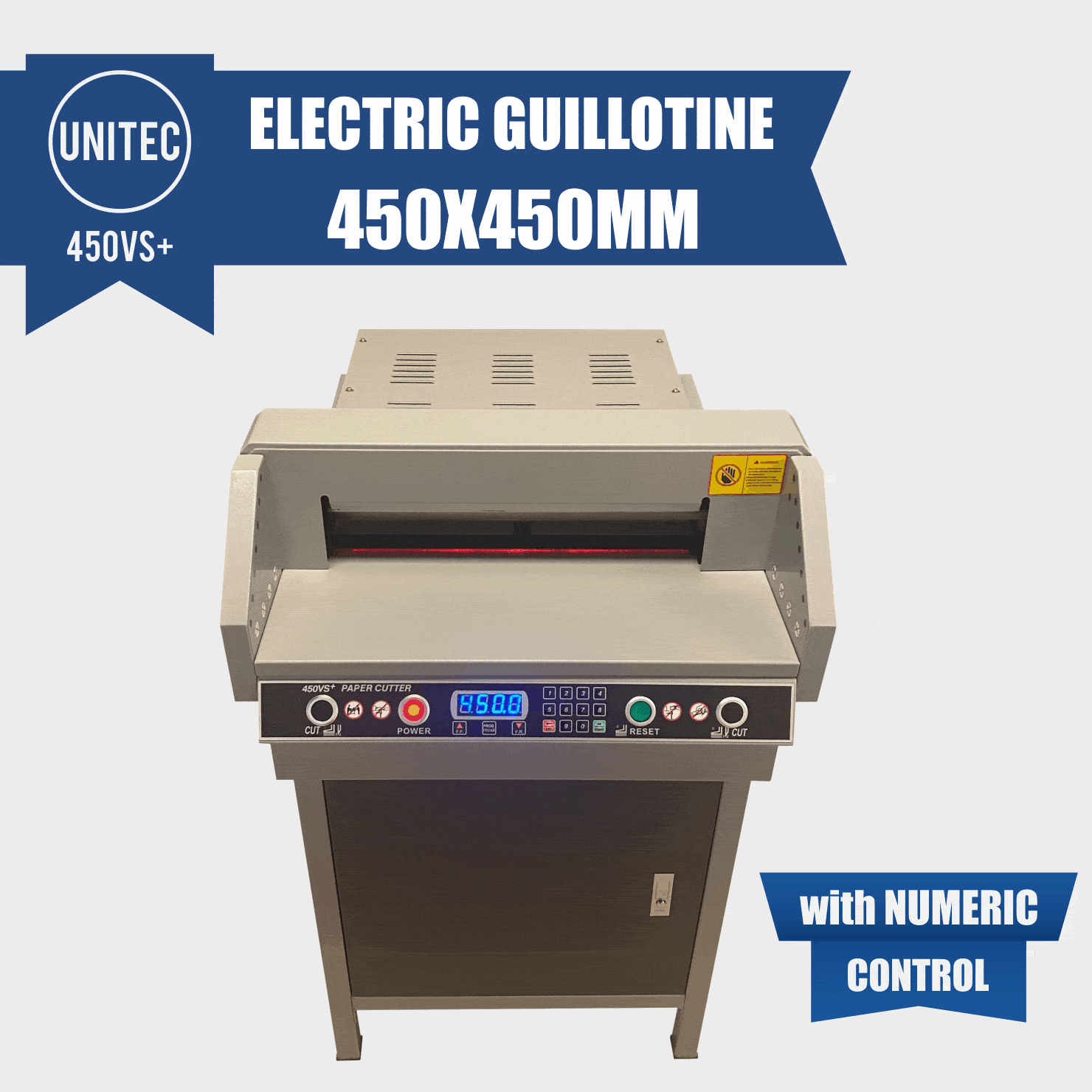

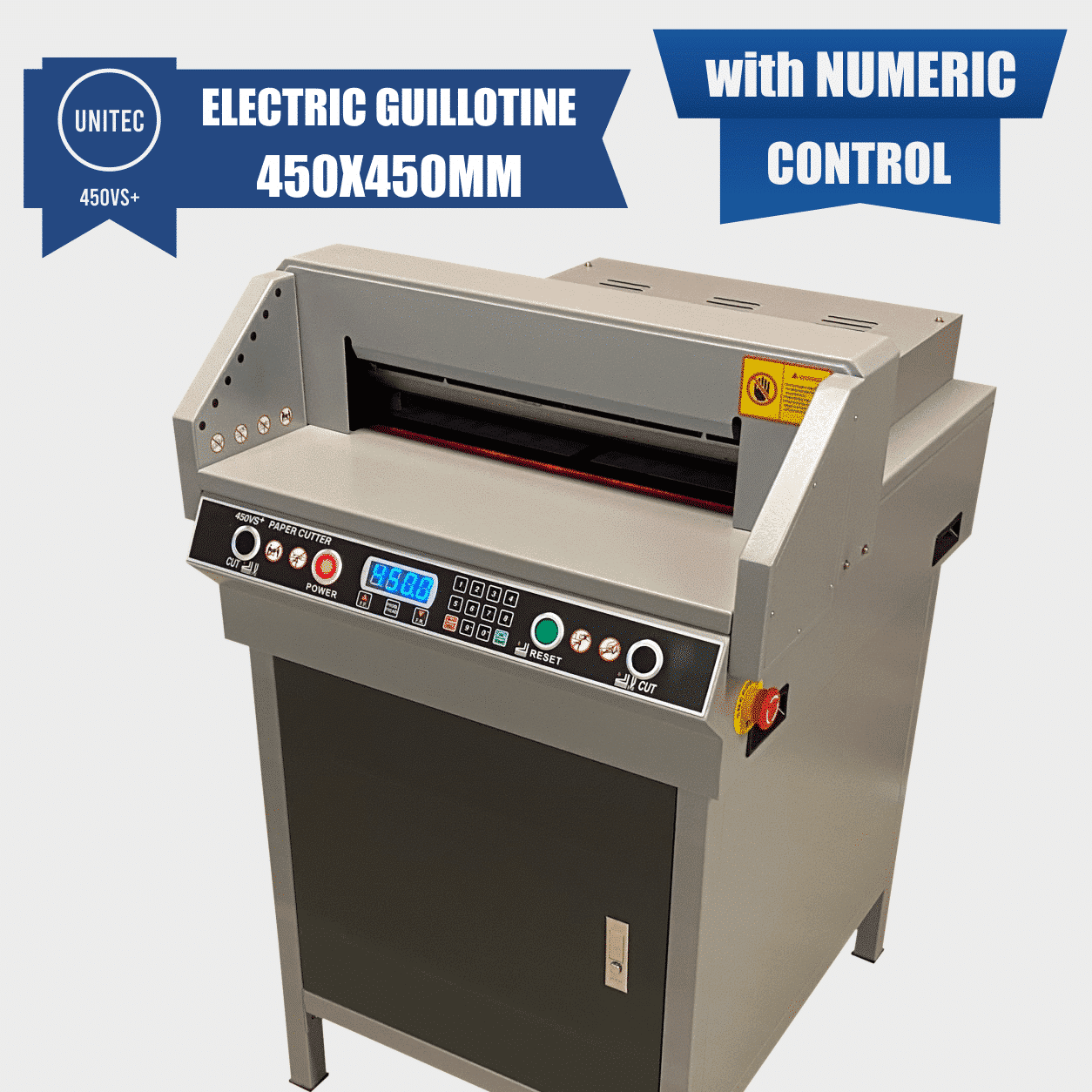

UNITEC 450VS + GUILLOTINE WITH NUMERICAL CONTROL

New Product, Warranty: 12 months

Electrically operated work table
Maximum cutting width: 450 mm
Minimum cutting length: 50 mm
Maximum cutting height: 40 mm
The length of the table in front of the blade: 195 mm
Precision: ± 0.5 mm
Paper pushing: automatic (electrically controlled)
Digital setting for the cutting size

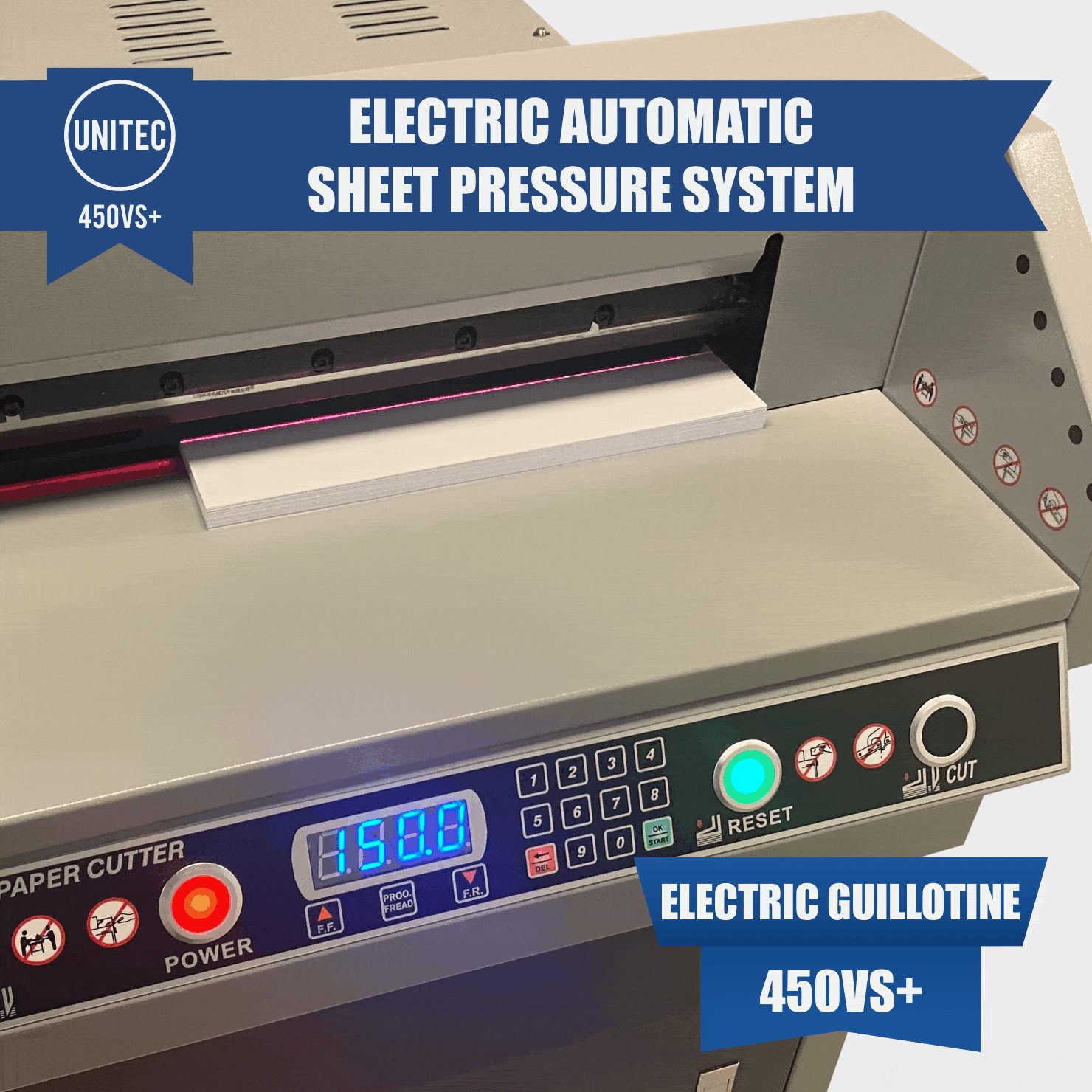

Electric sheet pressure system – automatic

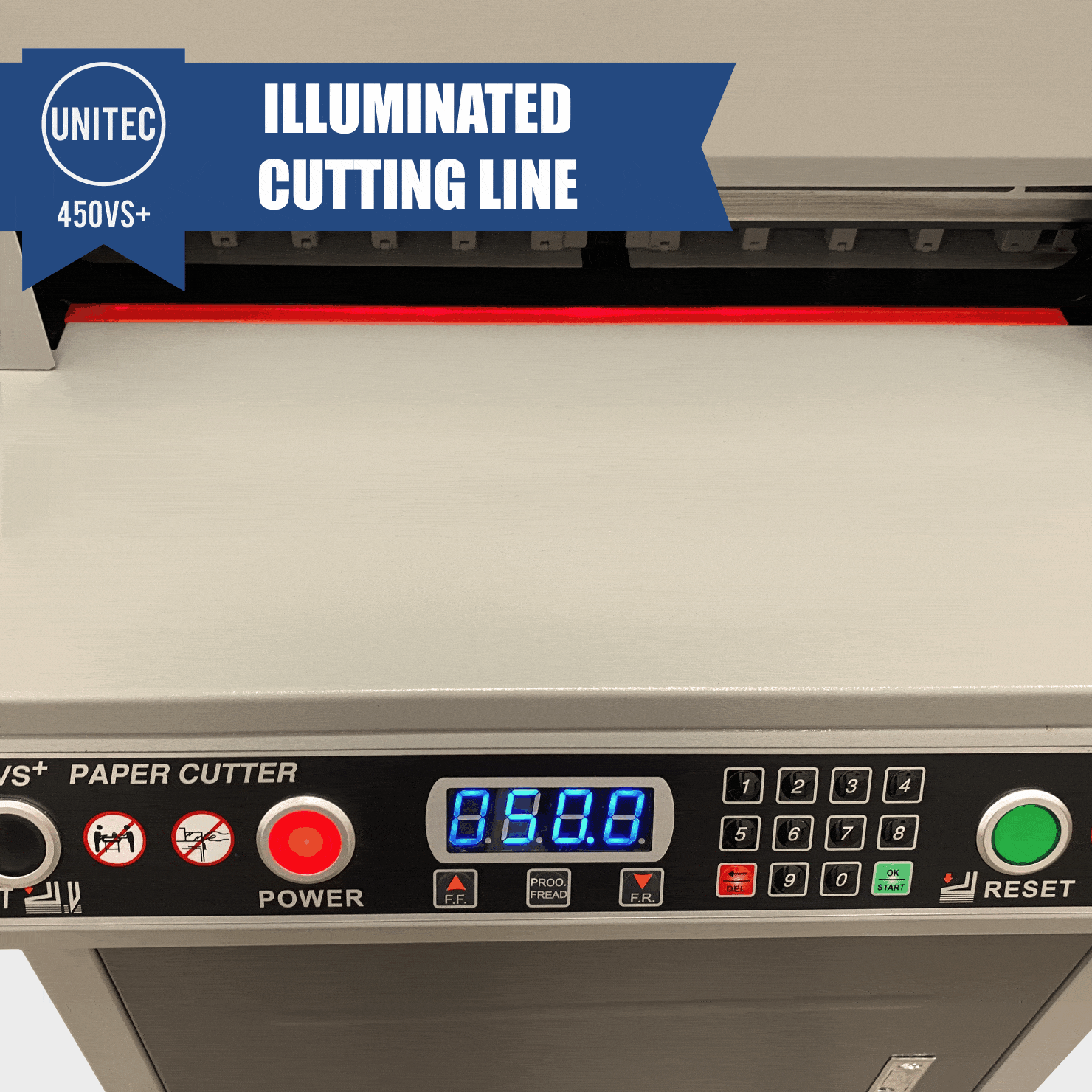

Cutting line lighting system

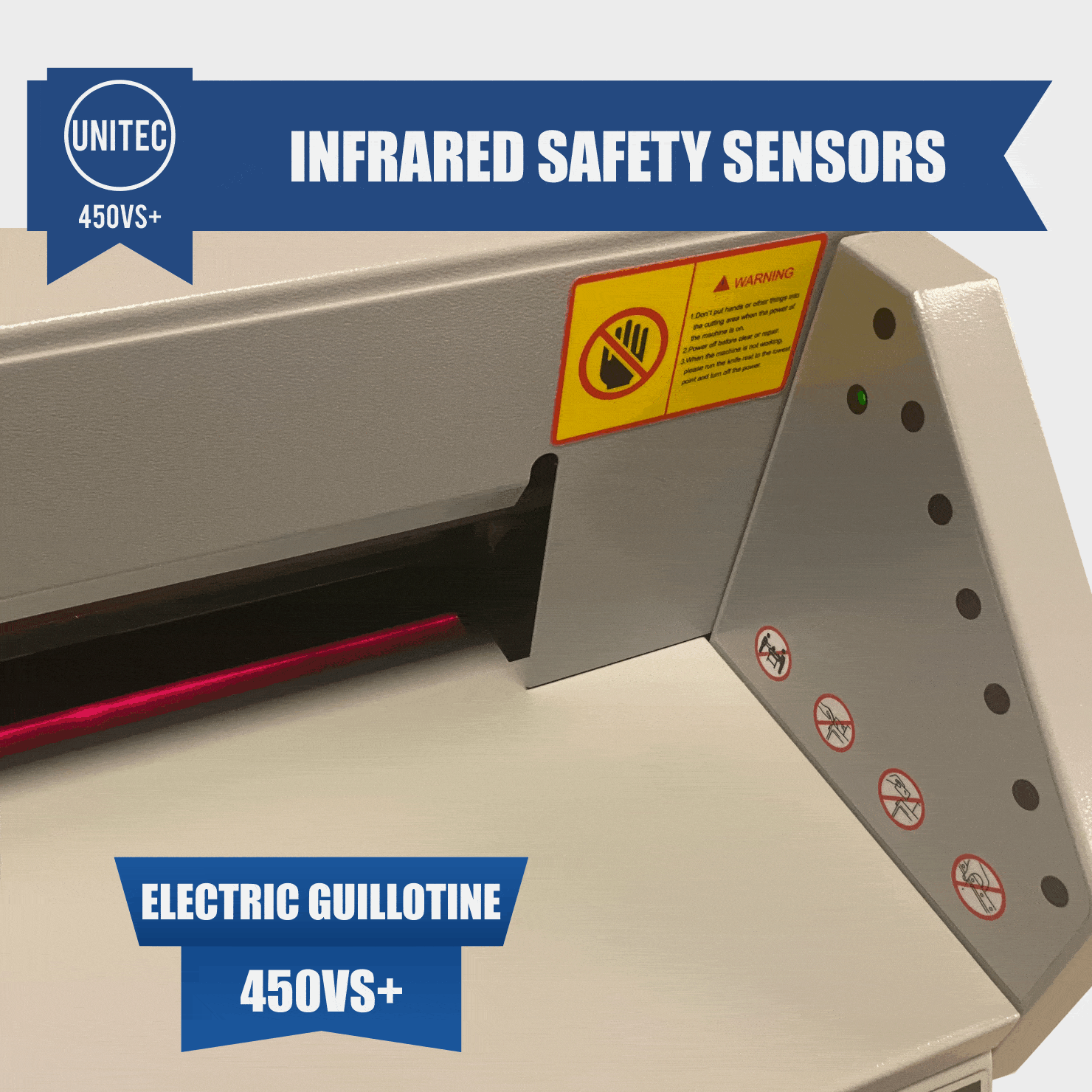

Operator protection is achieved through a field of infrared sensors that protect the work area
The cut is made electrically by simultaneously pressing 2 separate control buttons
Blade: special steel
Metal work stand included, which can be easily used as storage space
Voltage: 220V
Weight: 96kg

Machine dimensions:
450VS+ – without packaging:
Lenght: 80 cm
Width: 65 cm
Height: 101 cm

Is it hard to install ?

Each guillotine comes ready to use. The only thing you have to do is assemble the metal stand.

What do I do if I can’t handle the installation ?

If you encounter difficulties, please contact your sales agent, who will offer you technical support by phone or on whatsapp for FREE.

What maintenance does the guillotine require?

Each guillotine must be cleaned and greased periodically. The guide rails for the blade and sole must be lubricated, failure to do so will lead to premature wear.

When should the blade be sharpened?

The guillotine knife is one of the most important components. Excessive cutting with an unsharpened blade leads to forcing the motors on the machine. We recommend sharpening the blade when fringes appear on the cut sheets, and the final cut is not perfectly clean.

Product warranty
All products benefit from a 12 month warranty. Consumables and subassemblies such as the cutting blade or any wear caused by the lack of maintenance of the machine (lubrication of the machine) are not covered by the warranty.

Transport of products under warranty
During the warranty period, the service operations of the equipment are performed at the headquarters of Euro Paper SRL, str. Tarnavei, nr. 2, Brasov. The return transport costs of the service team or by express courier are borne by the buyer.

How do I benefit from the warranty?
Defective products during the warranty period will be repaired at the headquarters of Euro Paper SRL, str. Tarnavei, nr. 2, Brasov. In order to benefit from the warranty, you must send us the defective product, properly packaged so as not to suffer damage during transport, accompanied by a copy of the original invoice + warranty certificate. To request the warranty, please contact by phone the sales agent who took care of your order, before sending the package and let us know the nature of the defect. Within a maximum of 15 working days the product will be returned in working order or will be replaced with another new product.

SHIPPING

Shipping within 5-10 days with DB Schenker.
